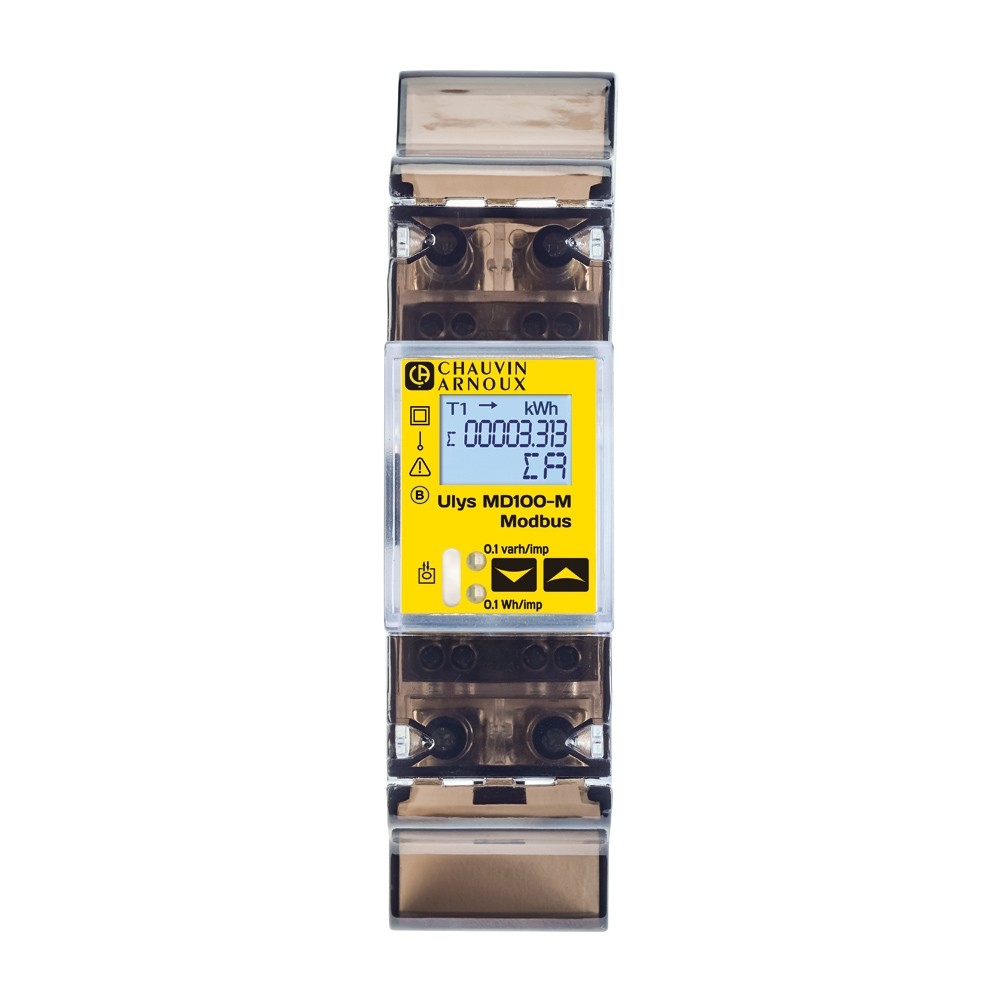

ULYS MD100-M

ULYS MD100-M
Highlights



.  Covers all single-phase feeders up to 100A

·  MID-certified - Accuracy class B

.  Bidirectional metering - Consumption/generation

·  Parameterizable total meter

.  Partial metering

.  Dual-tariff metering

·  Display of all the instantaneous electrical quantities

.  Navigation and parameter settings on front panel with touch-sensitive keys

·  2 pulse outputs with parameterizable weight

Description

  ULYS MD100-M is dedicated to measurement and rebilling of energy consumption on single-phase 230 Vac networks up to 100A.
Compliant with the EN 50470-1 standard and MID-certified, it is particularly suitable for uses linked to camping sites, marinas, holiday rentals and datacenters, as well as in industry.
Its compact dimensions (2 DIN modules) make it easy to install in an electrical control box or an energy supplier's outdoor junction box.
Its pulse outputs can be connected to a data concentrator such as ELOG for remote data retrieval with a PC, using consumption supervision software such as E.ONLINE.

ULYS MD100-M displays a large amount of information:

  • Instantaneous electrical quantities: V - I - F - PF - P - Q - S
  • The total active and reactive energy indices according to the flow direction
  • The indices of the active and reactive energy generated and consumed at tariff 1 and tariff 2
  • The parameterizable total active energy index: total generated, total consumed, balance, etc.
  • The partial energy consumption index

Its simplified display gives an instantaneous view of the main quantities on its backlit LCD screen and all the other quantities can also be displayed (in particular, using the touch sensitive keys on the front panel or the optical head for configuration).

Main specifications:

  • Operating voltage: 195-253 VAC
  • Rated current: 100 A
  • Inrush current: 20 mA
  • Minimum current: 250 mA
  • Operating frequency: 50Hz ±10%
  • Tariff-change input: 0 Vac= tariff 1,  230 Vac = tariff 2
  • Metrological LED: 10,000 pulses/kwh/kvarh
  • Pulse output weight: 1,000 pulses/kWh  import / export
  • 2 DIN modules
Designation
Price
Reference
Quantity
Actions
COMPTEUR ULYS MD100-M
-
P01330760
-
