RMMX

RMMX
Highlights
  • Instantaneous plug-in relays with 8 contacts, 10 A
  • More compact dimensions
  • Solid and rugged construction for intensive duty
  • Very high electrical life expectancy and exceptional endurance
  • Self-cleaning knurled contacts
  • Optional magnetic arc blow-out
  • Manual operating lever and mechanical optical contact status indicator as standard
  • Transparent cover, pull-out handle
  • Wide variety of configurations and customizations
  • Wide range of sockets
Description

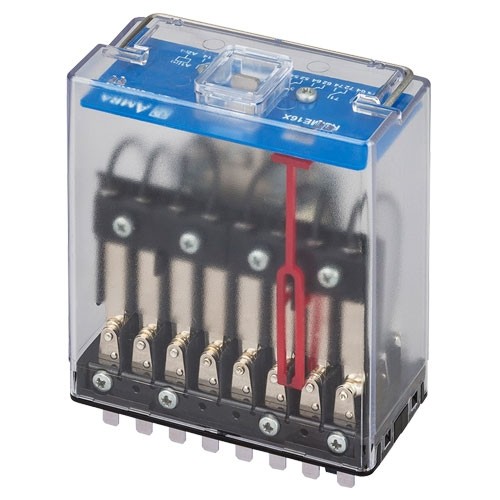

Very high performance relays with 8 changeover contacts, derived from the RMM series but having more compact dimensions.

Knurled contacts to provide lower ohmic resistance thanks to the multiple electrical connection points:

- Extended electrical life expectancy of the component

- Optimal performance for strongly inductive DC loads and for very low loads, such as in the case of interface signals.

Exceptional breaking capacity for controlling very heavy duty DC loads, also with intensive switching frequency.
Optional magnetic arc blow-out for even higher breaking capacity.

 Available nominal voltage from 12 to 220VDC/440VAC.

Facility to adapt the products to meet specific application requirements.
The typical application sectors are among the most demanding, such as:

- Electricity generating stations

- Electrical transformer stations

- Fixed equipment for railways

- Industries using continuous production processes (chemical and petrochemical, rolling mills, cement works, etc.)

Compliance with standards
  • EN 61810-1, EN 61810-2, EN 61810-7 Electromechanical elementary relays
  • EN 60695-2-10 Fire hazard testing
  • EN 60529 Degrees of protection provided by enclosures
