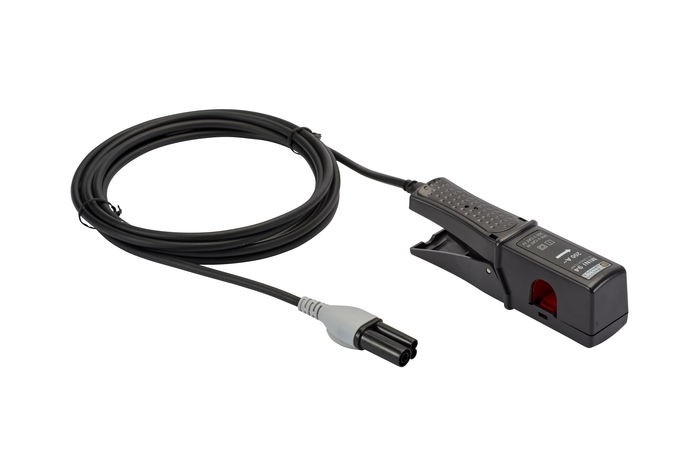

The MINI 94 clamp is a current clamp for measuring AC current without any action on the installation (no need to cut off the current to be measured).
The MINI 94 is a current clamp for measuring at industrial frequencies up to 200 A with an accuracy class of 0.2.
Its excellent accuracy (gain and phase) make it ideal for current measurements with power and energy analysers. In particular, it can be used to check energy meters.
Its specific feature: the lead for the output signal is equipped with a moulded 4-pin connector compatible with the latest-generation Qualistar Class A models from Chauvin Arnoux. The clamp is then powered by the instrument. The specific connector allows automatic recognition of the clamp by the instrument.
MINI 94 AC clamp
- Current range from 50 mA 200 AAC
- Operation from 48 Hz to 65 Hz
- Clamping diameter: 16 mm
- IEC 61010 CAT III – 600 V / Cat IV - 300 V
- Dimensions: 130.4 x 46 x 34 mm
- Weight: 250 g
- Cable length: 3 m
- 2-year warranty
The MINI 94 is delivered with a User's Manual.
