PEL52 POWER-ENERGY LOGGER

Technical datasheet
References
Support

Highlights

Markets: small tertiary and residential
- electricians for consumption monitoring
- can be used to differentiate between the different loads
More accurate thanks to the MINI94 current sensor
Ergonomics: easy to read, simplicity, connections, compact design
Connection via clamp without cutting off the power supply

Description

The PEL52 power logger and energy meter provides a simple but comprehensive solution for electricians seeking to monitor consumption:

- In the context of energy savings

- Or to improve a building's energy efficiency

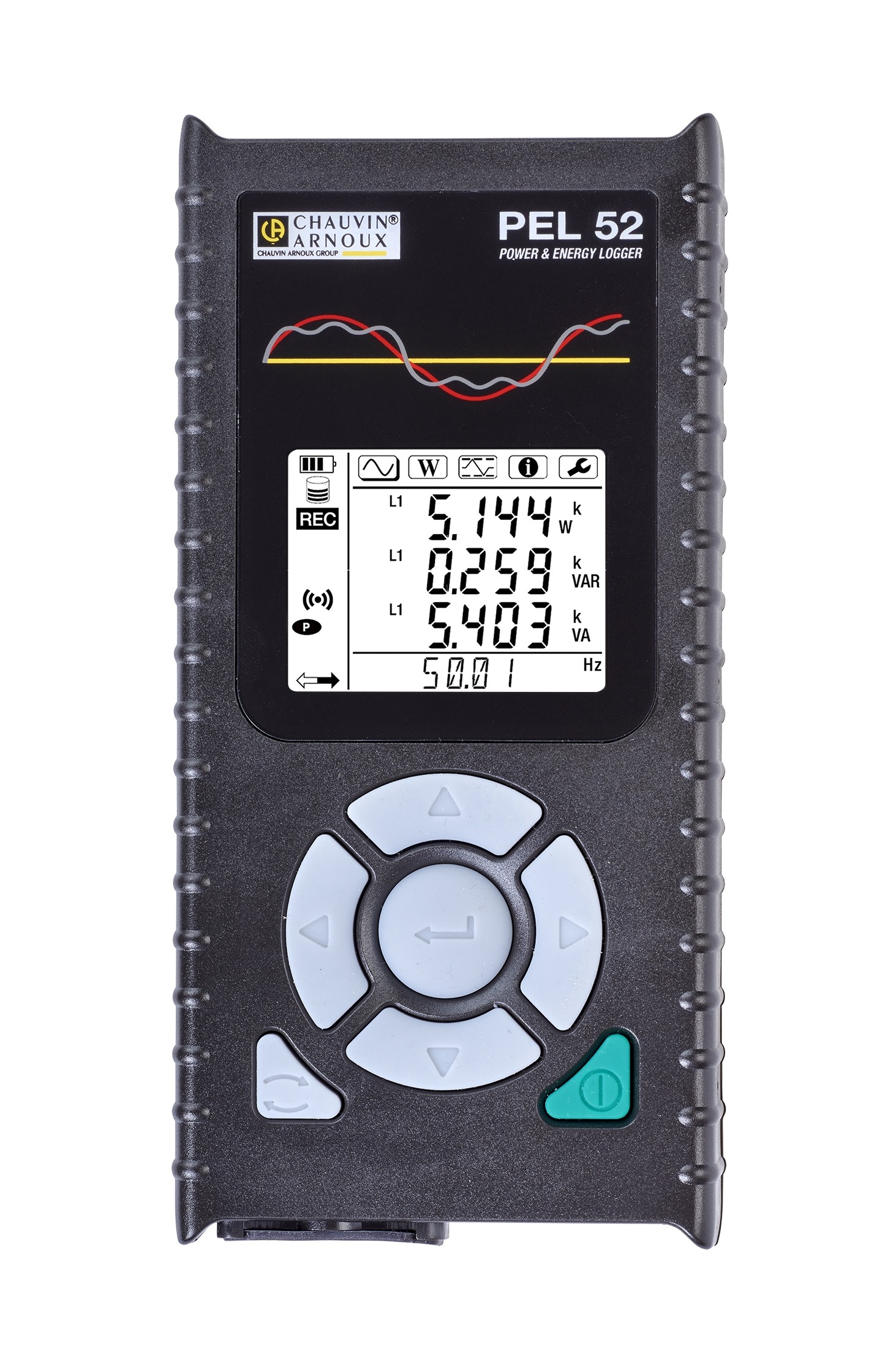

The compact PEL52 fits in one hand and is easy to handle. Its magnetized casing allows you to position it in smaller electrical cabinets where space is at a premium. No need to cut off the mains to start using it. In addition, it is self-powered via the phase, making it ideal for long campaigns.

The backlit multi-display LCD screen is particularly easy to read. Le PEL52 is equipped with 2 channels, enabling it to be used on split-phase installations or on 2 single-phase installations. The PEL52 performs the following measurements:

TRMS voltage and current measurement
Power measurement: W, VA and var (N, Q₁ and D)
Measurement of PF, DPF, CF and THD

The PEL52 offers multiple communication modes for real-time monitoring or for saving measurement results:

Wifi communication
Integrated web server
PEL Transfer^® software for data back-up, real-time display and analysis.

BONUS SOFTWARE: integrated software tool for breaking down the losses and energies converted directly into costs, with a configurable monetary value

To view the documents available in other languages

References

Designation

Price

Reference

Quantity

Actions

LOGGER PEL52 2 VOIES PUISSANCE

Accessories

P01157167

Quotation

DATAVIEW Software

P01102095

Quotation

C193 clamp BK

P01120323B

Quotation

MN93 clamp BK

P01120425B

Quotation

MN93A clamp BK

P01120434B

Quotation

A193 AmpFlex 450mm BK

P01120526B

Quotation

A193 AmpFlex 800mm BK

P01120531B

Quotation

REELLING BOX

P01102149

Quotation

Mains lead 2P EUR.

P01295174

Quotation

Bag no.23

P01298078

Quotation

MINIFLEX MA194-350

P01120592

Quotation

MINIFLEX MA194-250

P01120593

Quotation

MINIFLEX MA194-1000

P01120594

Quotation

C8 ADAPTER

P01103077

Quotation

SD CARD

P01103078

Quotation

MINI94 AC CURRENT CLAMP

P01106194

Quotation
