With protection against electric shocks up to 12 kV, the F600 Series fulfils the most demanding safety criteria (CAT IV 1,000 V/CAT III 1,500V) and offers a high protection rating allowing users to work in total safety on all LV installations.
The F600 Series is ideal for high-power applications such as electrical power distribution, chemical and petrochemical industries, metallurgy, rail transport, etc.

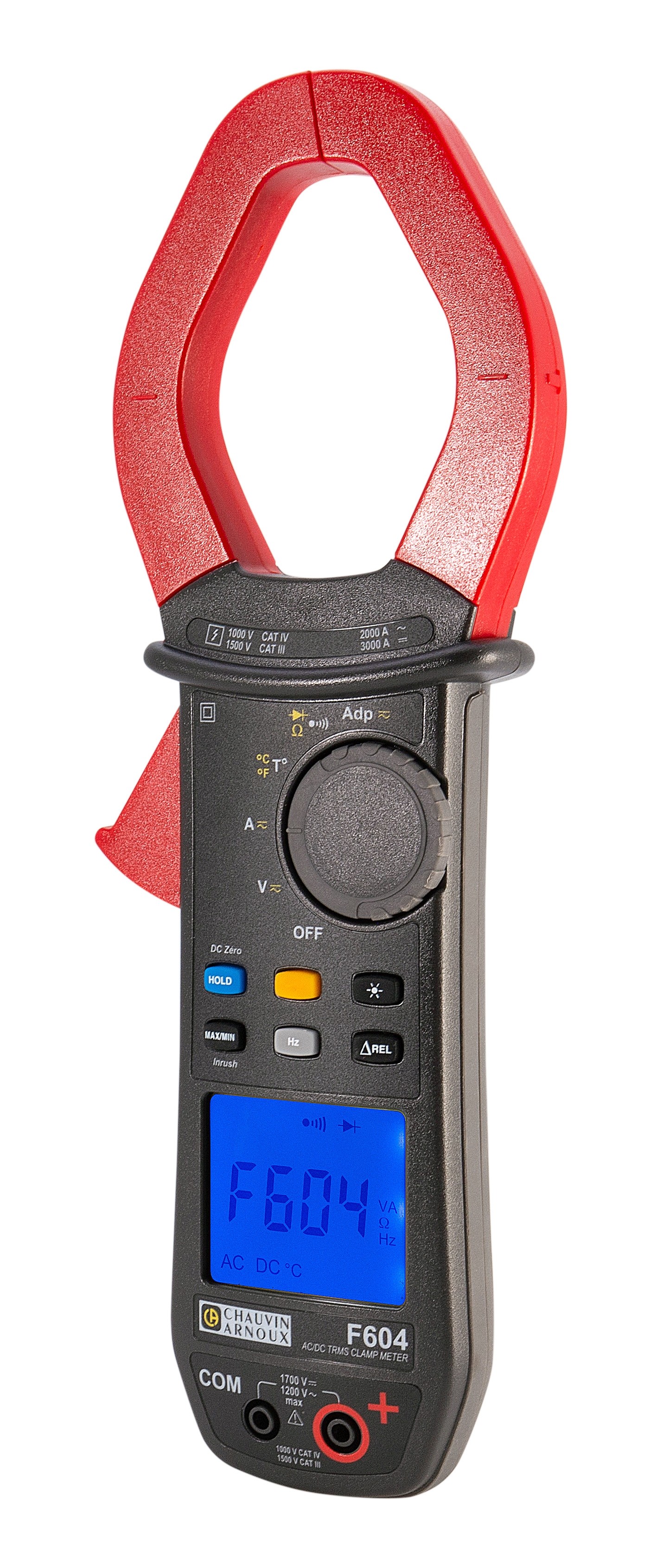

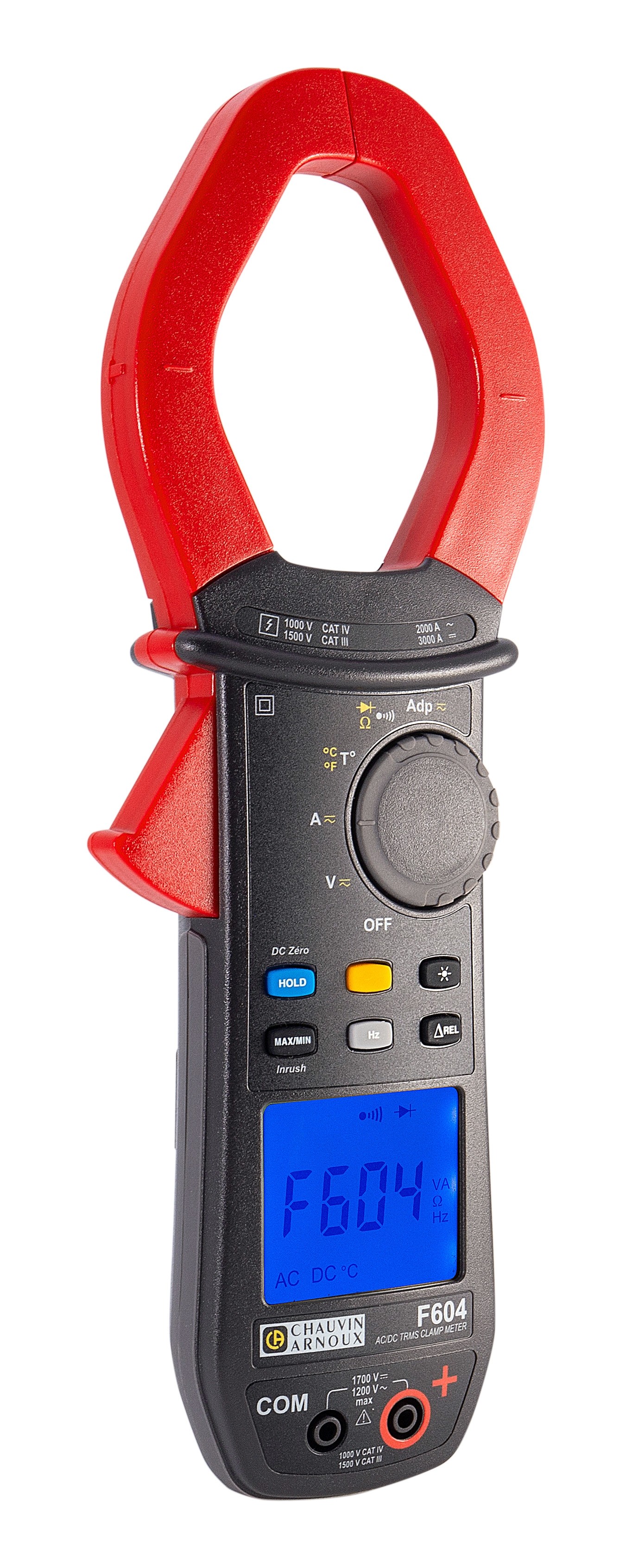

Equipped with a fast 12-bit TRMS digital acquisition system, F604 clamps offer particularly accurate measurements whatever the signal's waveform.
Specifications:
• Clamping diameter: 60 mm
• Current: 2,000 A AC / 3,000 A DC
• Voltage up to 1,200 AAC et 1,700 ADC
• Resistance and audible continuity
• Temperature
• Automatic AC/DC detection
• TrueInrush current measurement
• Hold, Min, MAX
• RELative (ΔX) and differential (ΔX/X) measurements
• Adapter function
• CAT IV 1,000 V / CAT III 1,500 V
• IP54 protection rating
